Getting Started¶

Quick Start¶

One command, nothing else to install:

docker run -p 3000:3000 ghcr.io/scub-france/docling-studio:latest-local

Open http://localhost:3000, upload a PDF, and get results. That's it.

Note

The first analysis takes longer as Docling downloads its ML models (~400 MB). Subsequent runs are fast.

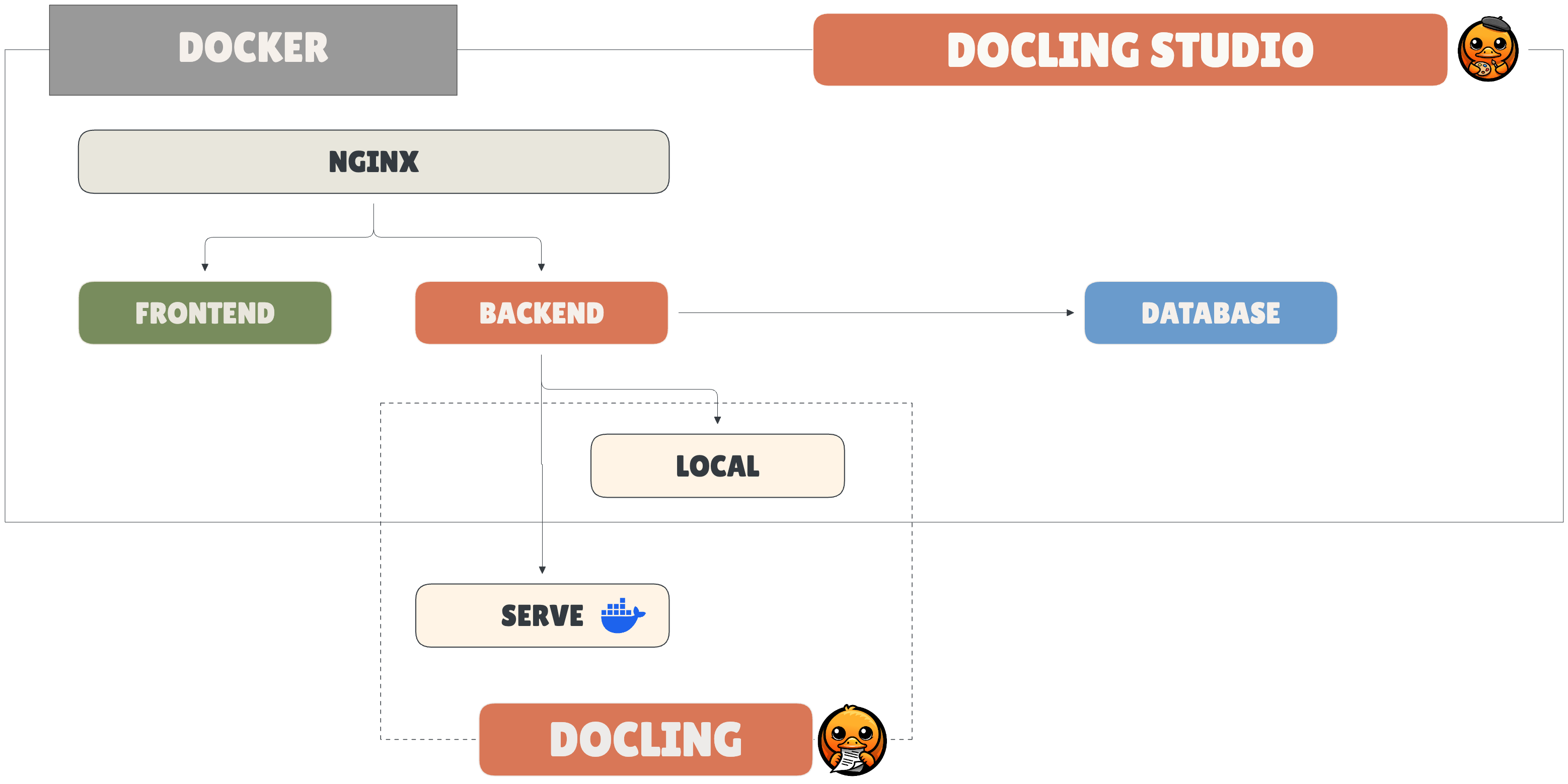

Docker architecture { width="600" }

Image Variants¶

Variant	Image tag	Size	Description
local	`latest-local`	~1.9 GB	Full — runs Docling in-process, CPU-only
remote	`latest-remote`	~270 MB	Lightweight — delegates to an external Docling Serve instance

For remote mode:

docker run -p 3000:3000 \
  -e DOCLING_SERVE_URL=http://your-docling-serve:5001 \
  ghcr.io/scub-france/docling-studio:latest-remote

Docker Compose¶

git clone https://github.com/scub-france/Docling-Studio.git
cd Docling-Studio

# Simple mode (backend + frontend only)
docker compose up --build

# With ingestion pipeline (OpenSearch + embeddings)
docker compose --profile ingestion \
  -f docker-compose.yml -f docker-compose.ingestion.yml \
  up --build

Local Development¶

Backend (Python 3.12+)Frontend (Node 20+)

cd document-parser
uv sync --group dev

# Remote mode (lightweight)
uv run uvicorn main:app --reload --port 8000

# Local mode (with Docling)
uv sync --group dev --group local
uv run uvicorn main:app --reload --port 8000

cd frontend
npm install
npm run dev

The frontend runs on http://localhost:3000 and proxies API calls to http://localhost:8000.

Running Tests¶

BackendFrontend

cd document-parser
uv run pytest tests/ -v

cd frontend
npm run test:run

Pipeline Options¶

These options map directly to Docling's PdfPipelineOptions.

Option	Default	Description
`do_ocr`	`true`	OCR for scanned pages and embedded images
`do_table_structure`	`true`	Table detection and row/column reconstruction
`table_mode`	`accurate`	`accurate` (TableFormer) or `fast`
`do_code_enrichment`	`false`	Specialized OCR for code blocks
`do_formula_enrichment`	`false`	Math formula recognition (LaTeX output)
`do_picture_classification`	`false`	Classify images by type
`do_picture_description`	`false`	Generate image descriptions via VLM
`generate_picture_images`	`false`	Extract detected images as separate files
`generate_page_images`	`false`	Rasterize each page as an image
`images_scale`	`1.0`	Scale factor for generated images (0.1–10)

Chunking Options¶

Note

Chunking is only available in local mode. The chunking UI is hidden when using remote mode (Docling Serve).

After a document is analyzed, you can split the extracted content into semantic chunks. Chunking can be configured at analysis time or re-run later with different options via the rechunk action.

Option	Default	Description
`chunker_type`	`hybrid`	`hybrid` (semantic + structural), `hierarchical` (heading-based), or `page` (one chunk per page)
`max_tokens`	`512`	Maximum tokens per chunk
`merge_peers`	`true`	Merge sibling elements under the same heading
`repeat_table_header`	`true`	Repeat table headers when a table is split across chunks

Each chunk includes:

text — the chunk content
headings — heading hierarchy leading to the chunk
source_page — the page number the chunk originates from
token_count — number of tokens in the chunk
bboxes — bounding boxes of the chunk's source elements (page + coordinates)

Configuration¶

All configuration is done via environment variables:

Variable	Default	Description
`CONVERSION_ENGINE`	`local`	`local` (in-process Docling) or `remote` (Docling Serve)
`DOCLING_SERVE_URL`	`http://localhost:5001`	Docling Serve endpoint (remote mode only)
`DOCLING_SERVE_API_KEY`	—	API key for Docling Serve (optional)
`CORS_ORIGINS`	`http://localhost:3000,...`	CORS allowed origins
`UPLOAD_DIR`	`./uploads`	File storage directory
`DB_PATH`	`./data/docling_studio.db`	SQLite database path
`CONVERSION_TIMEOUT`	`600`	Max seconds per Docling conversion
`BATCH_PAGE_SIZE`	`10`	Pages per batch (`0` = process all at once)
`MAX_CONCURRENT_ANALYSES`	`3`	Maximum parallel analysis jobs
`DEPLOYMENT_MODE`	`self-hosted`	`self-hosted` or `huggingface` (shows disclaimer banner)
`MAX_FILE_SIZE_MB`	`50`	Maximum upload file size in MB (`0` = unlimited)
`MAX_PAGE_COUNT`	`0`	Maximum number of pages per document (`0` = unlimited)
`RATE_LIMIT_RPM`	`100`	Max requests per minute per IP (`0` = disabled)
`APP_VERSION`	`dev`	Application version (set automatically by CI/Docker)

Upload Limits¶

Docling Studio enforces configurable limits on uploaded documents to protect the server against oversized files and long-running analyses:

MAX_FILE_SIZE_MB (default 50) — rejects uploads exceeding this size. Validated at two levels: early Content-Length check and streaming byte count.
MAX_PAGE_COUNT (default 0 = unlimited) — rejects documents with more pages than allowed. Useful on shared instances or Hugging Face Spaces to cap processing time.

Both limits are exposed in the /api/health endpoint so the frontend can display them to the user before upload. Set either to 0 to disable the corresponding check.

Ingestion Pipeline (opt-in)¶

Docling Studio can optionally index extracted chunks into OpenSearch for vector and full-text search. This requires two additional services (OpenSearch + embedding) and is disabled by default.

To enable ingestion with Docker Compose:

docker compose --profile ingestion \
  -f docker-compose.yml -f docker-compose.ingestion.yml \
  up --build

When ingestion is enabled, the UI shows:

An Ingest button in Studio to push chunks to OpenSearch
An OpenSearch connection status badge in the sidebar
Indexed / Not indexed filters on the Documents page
A Search page for full-text and vector search across indexed documents

Variable	Default	Description
`OPENSEARCH_URL`	—	OpenSearch endpoint (empty = ingestion disabled)
`EMBEDDING_URL`	—	Embedding service endpoint (empty = ingestion disabled)
`EMBEDDING_DIMENSION`	`384`	Vector dimension (must match embedding model)

System Requirements¶

	Remote image	Local image
Image size	~270 MB	~1.9 GB
Memory	2 GB	6 GB (recommended 8 GB+)
CPUs	2	4 (recommended 8+)

All Docker images are multi-arch (linux/amd64 + linux/arm64). No GPU required.
